SV241 Pro – Astro Power Box
SV241 Pro – Astro Power Box
Vanlig pris
1.790,00 NOK
Vanlig pris
Salgspris
1.790,00 NOK
Inkludert MVA.
Frakt beregnes ved kassen.
Antall
Lav lagerbeholdning: 1 igjen
Kunne ikke laste inn hentetilgjengelighet
Full kontroll på strøm, dew heaters og kabler – i én kompakt enhet.
SVBONY SV241 Pro er en avansert Astro Power Box utviklet spesielt for moderne astrofotografer. Den samler all strømstyring for kamera, montering, kjøling, dew heaters og tilbehør i én smart og PC-styrt hub – og gjør riggen din både mer stabil, ryddig og pålitelig.
Perfekt for både portable oppsett og permanente observatorier.

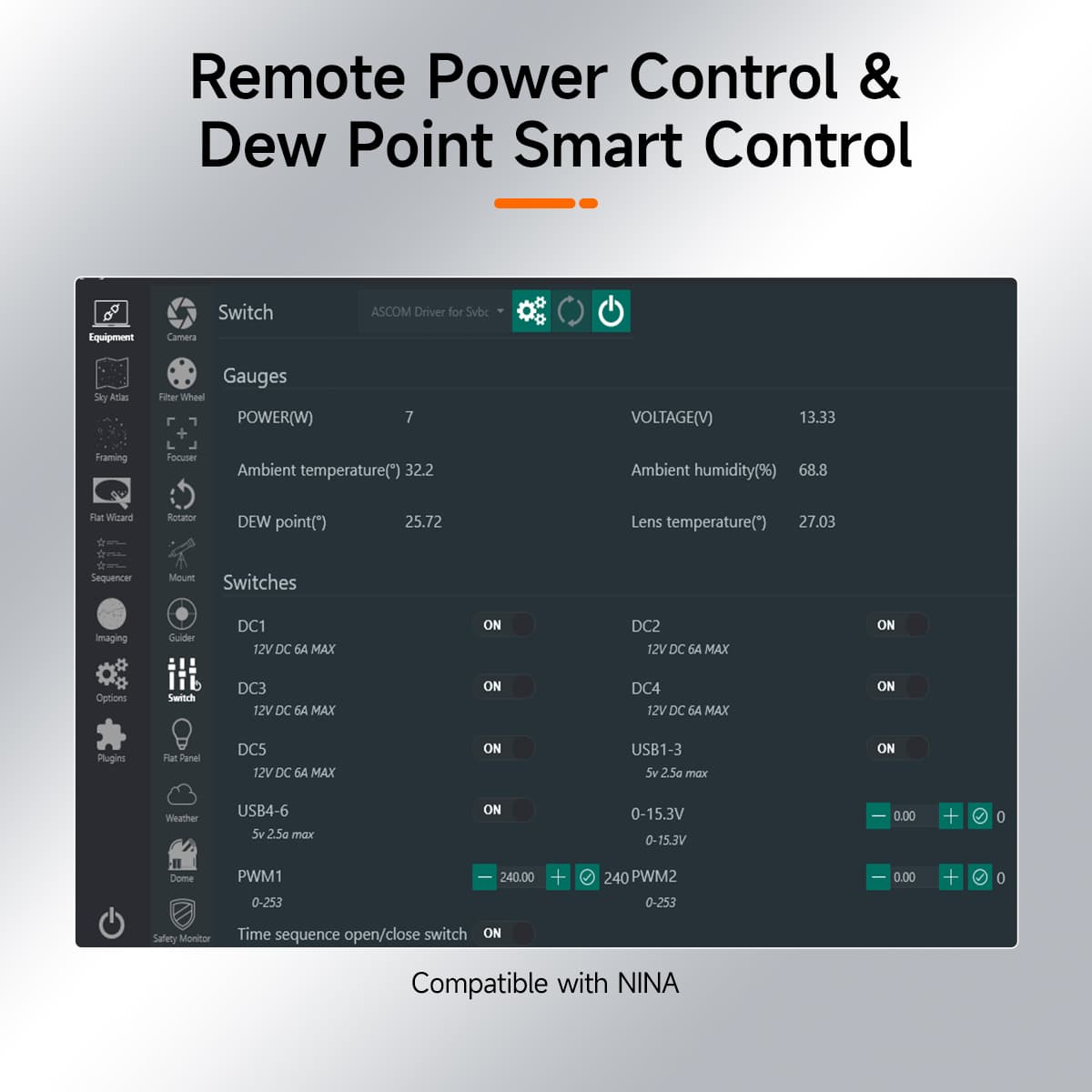

Med støtte for ASCOM og dedikert programvare kan du:
- Slå strøm på/av til hvert utstyr
- Overvåke spenning og belastning
- Styre dew heaters automatisk
- Starte og stoppe enheter eksternt
- Ha kontroll over temperatur og luftfuktighet
Spesifikasjoner:

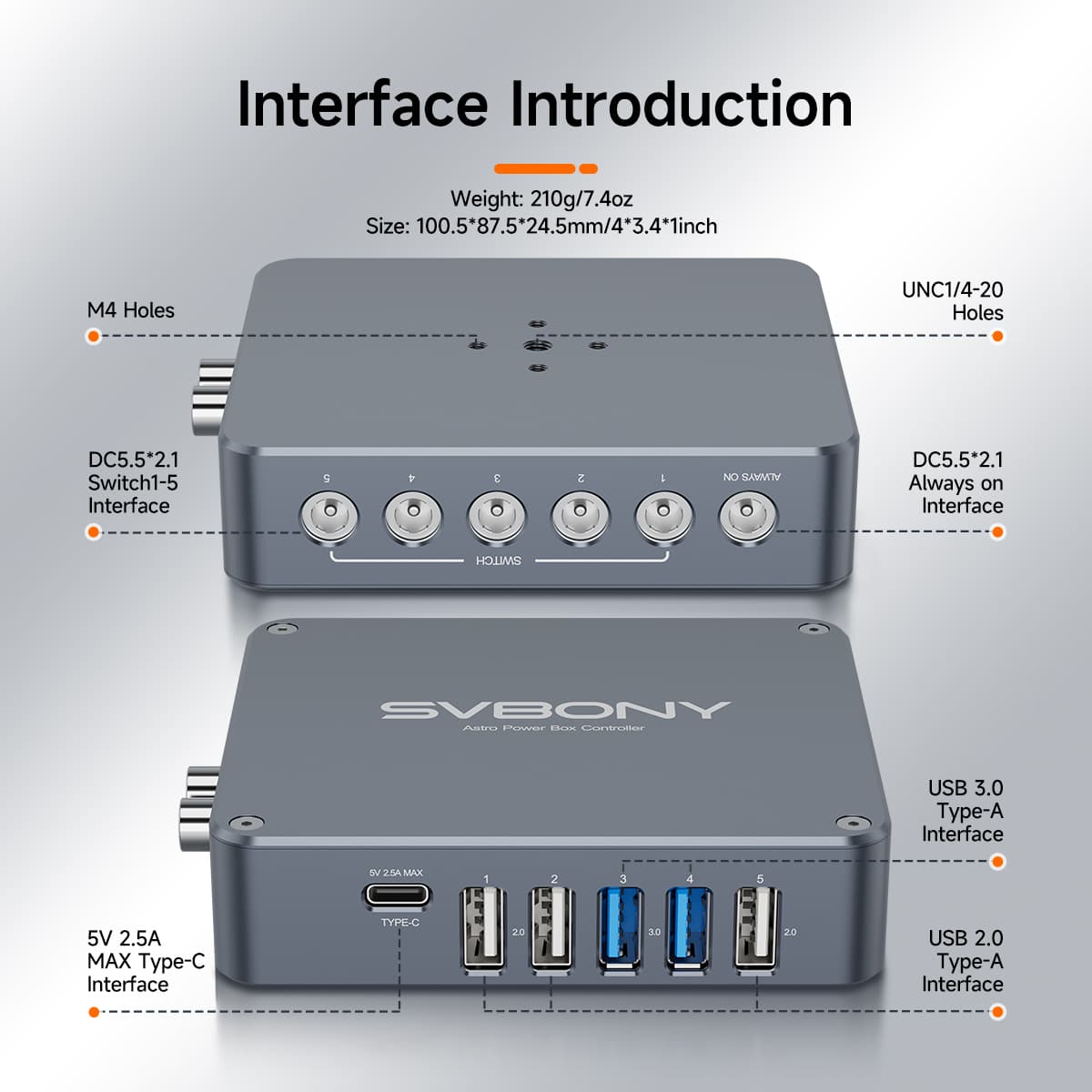

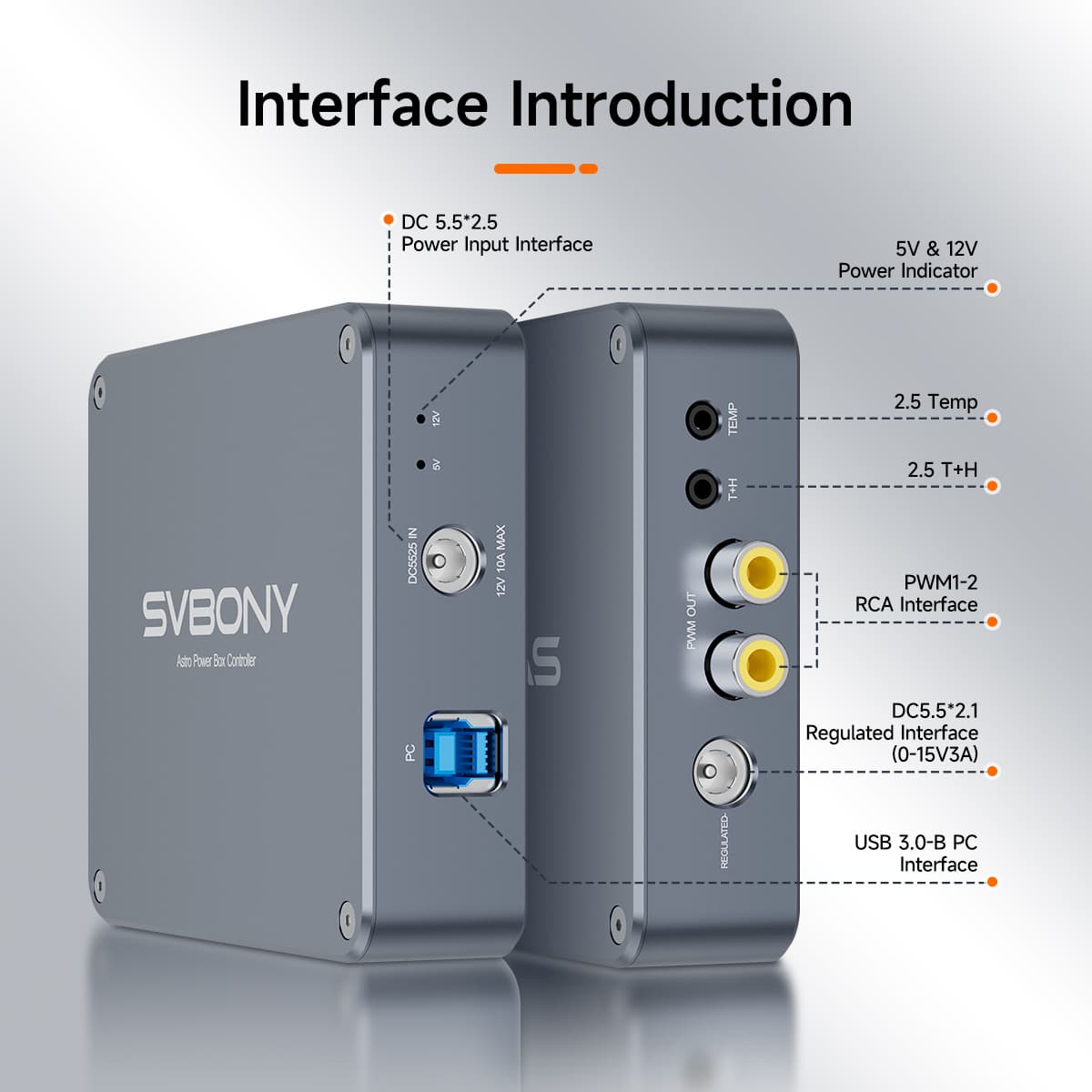

| Power Input | 12V 10A Max DC5.5*2.5 | |
| PC Input | USB3 Type B Connector | |
| DC Output: | Always on | 12V 6A MaxDC5.5*2.1 |
| Cannot be switched on/off | ||
| Switch1-5 | 12V 6A Max DC5.5*2.1 | |
| Can be switched on/Off | ||
| Regulated | 0-15V adjustable Regulated Output | |
| Can be switched on/off 3A Max | ||
| PWM1-2 | 12V 6A Max Black Colored RCA Connector | |
| Can be switched on/off | ||
| PWM Control possible | ||
| USB HUB |
2xUSB3.0 4xUSB2.0 |
USB type-c & USB2.0-1&USB2.0-2 Can be switched on/off together |
|
USB3.0-3&USB3.0-4&USB2.0-5 Can be switched on/off together |
||
| USB Power Supply | 4xUSB2.0 | 5V 2.5A |
| 2xUSB3.0 | 5V 2.5A | |
| Voltage/Current Monitor | Input current/ Voltage monitor | |
| Environment Sensor | 2.5mm TRRS Jack(4-Pole) | SHT40 Temperature & humidity sensor |
| 2.5mm TRRS Jack(4-Pole) | DS08B20 Temperature probe | |
| Temperature Range | Operating Temperature: -10°C to 50°C (Celsius) | |
| Humidity Range | Operating Humidity: 5% to 85% RH (non-condensing) | |
| Dew Heater Control | 2 independent dewheaters | |
| Dewpoint temperature difference control | ||
| Constant temperature control | ||
| Manual control | ||
| ASCOM Compatibility | YES | |
| Screw Holes | M4 and UNC1/4-20 Holes | |
| Net Weight/g | approx.210g | |
| Product Size/mm | 100.5x87.5x24.5 | |

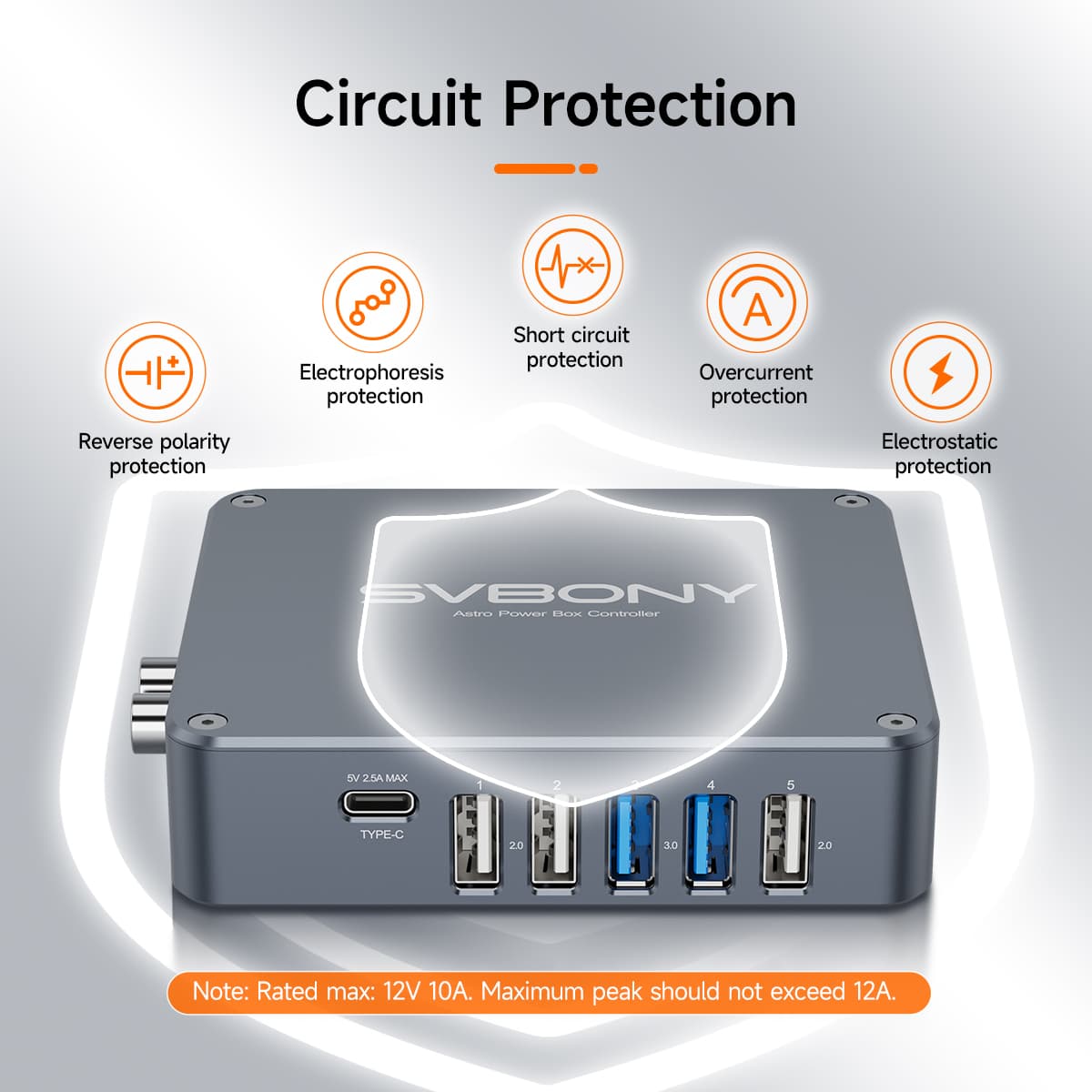

| Circuit Protection | Electrostatic Discharge (ESD) Protection | |
| Reverse Polarity Protection | ||
| Backflow Prevention | ||
| Filtering Protection [Adapted for USB 3.0 Interface & DC Interface] | ||
| Fusible Link | ||
| Under-voltage Protection | ||
| Over-voltage Protection | ||
| Over-current Protection | ||
| Short-circuit Protection | ||
| Power Detection | ||
| Smart Restart Function | ||

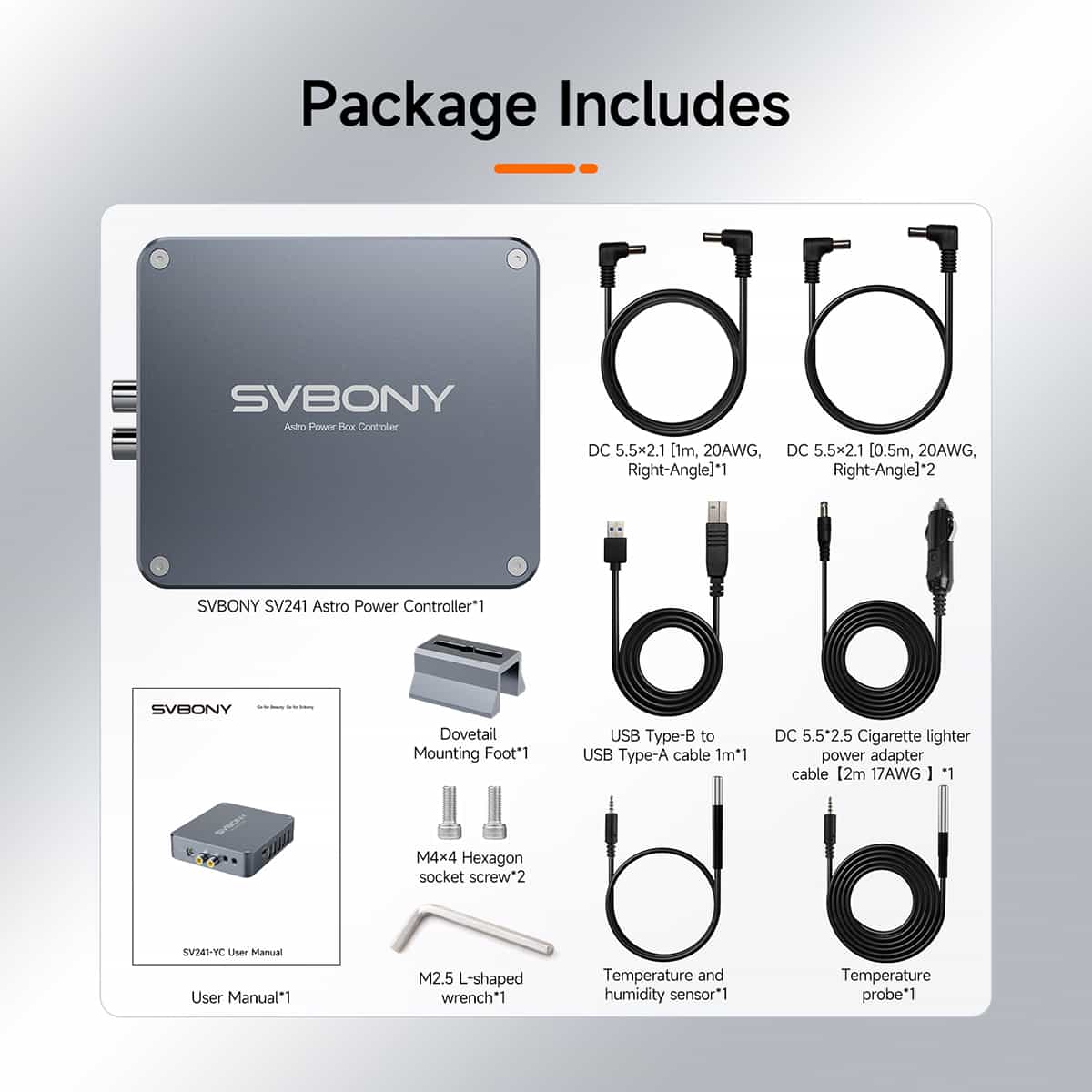

I esken:
- SV241-YC Power Box
- 1x USB-A til USB-B 3.0 kabel
- 1x 12V Biladapter til DC5525 12A max
- 2x DC5521 0,5m
- 1x DC5521 1m
- 1x Temperatur sensor
- 1x Temperatur og luftfuktighet sensor
- 1x Vixen dovetail mount
- Brukermanual
